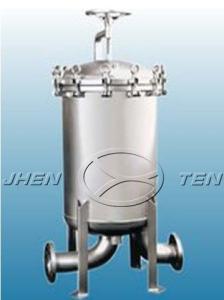

Wine Making Machine 4 # Hayward Bag Filter Housing Stainless Steel

Name: Wine Making Machine 4 Hayward Bag Filter Housing Stainless Steel
Brand: Jhenten
Price: 1 USD

Brand Name : Jhenten

Model Number : ZTBM-4P2S

Certification : CE,ISO9001,ASME U Stamp

Place of Origin : China (zhejiang）

MOQ : 1 PC

Price : Can negotiate

Payment Terms : L/C, D/A, T/T, Western Union, MoneyGram

Supply Ability : 3000 Set/Sets per Year

Delivery Time : 25 Days

Packaging Details : plywood packing or according to customer requirements

Material : SS316L or SS304

After-sales Service Provided : Engineers available to service machinery overseas

Filter Bag type : 1#Bag,2#Bag,3#Bag,4#Bag

filter accuracy : 0.1-20um

Max Operate Pressure : 1.0Mpa

Max Operate Temperature : 110 Celsius degree

condition : new

warranty : 1 year

Contact Now

Wine Filtrate Machine 4# Bag Stainless Steel B-Multi Bag Filter

Description:

Bag filter is a pressure type filter device. The liquid enter the filter bag from the beside pipeline of the cartridge, the bag is set on the strengthening net, liquid permeate the needed fineness grade filter bag can get the eligible filter liquid, and the impurity is taken by the filter bag. It is easy to change the filter bag, and no material consumption. The material of this filter is stainless steel. It has single bag type and multi.bags type. We can choose different structure and material as the different medium and filter requirement. The filtration material include nylon, PP, polyester, Nomex, politef.

Application:

It's widely used in paint, beer, vegetable oil, pharmaceutical, cosmetics, chemicals, petroleum products, chemicals, electroplating liquid, milk, mineral water, hot solvents, latex, industrial water, coatings and paints, sugar, molasses, resins, inks, industrial waste water, fruit juice, edible oil, waxes and other industries precision filtration.

High Performance:

(1) Big flow

(2) Long service life

(3) Ffiltering effect is obvious

(4) High mechanical strength

(5) Simple operation

(6) Cost savings

Main Parameters

Item	A (mm)	B (mm)	C (mm)	D (mm)
ZTBM4P2S	1700	750	600	200
ZTBM-6P2S	1900	750	750	200
ZTBM-8P2S	2450	750	1150	200
