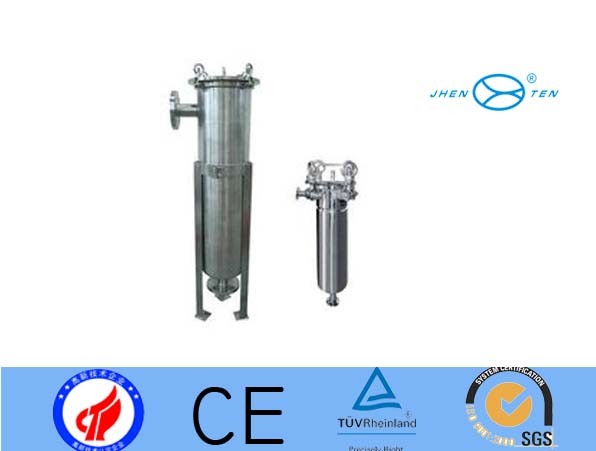

Water Filtration Machine Side Entry Bag Filter Housing For Shower Filtration

Name: Water Filtration Machine Side Entry Bag Filter Housing For Shower Filtration
Brand: Jhenten
Price: 1 USD

Brand Name : Jhenten

Model Number : ZTCD-1S

Certification : CE ISO9001 ASME SGS

Place of Origin : China (Zhejiang)

MOQ : 1 PC

Price : Get Latest Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000 Set/Sets per Year

Delivery Time : 25 Days

Packaging Details : plywood packing or according to customer requirements

Material : SS304,316L

Type : Ozone Water Purifier

Flow Type : Side entry

Surface Finish : Mirror Finish

Use : Shower Filtration

Gasket material : EPDM PTFE Viton Silicone

Connection standard : Flange ， Clamp，Screw thread

After-sales Service Provided : Engineers available to service machinery overseas

Contact Now

Stainless Steel Water Filtration Machine Side Entry Bag Filter Housing

Design Advantages and Features:

Good sealing and streamlined fluid flow.

The side entry bag filter housings accept standard #01 and #02 filter bags .
The main housings can be fabricated in various materials including, but not limited to 316SS and 304SS.
Easy to operate and requires low maintenance.
Filtration precision is guaranteed.
Easy filter bag change-out results in lower operational costs and minimal downtime.
The inside and outside of the main bag filter housings are sandblasted and polished which makes the bag filters easy to clean.
The supplied support legs are adjustable to meet any height requirements.
Leak-proof structure.
Easy to install and installation requires minimal space.
Can be used for coarse, intermediate, and fine filtration.
The polished filter element ensures no residue is deposited on the inside of the bag filter walls.
The eyebolt cover closures are made of stainless steel.
Can be equipped with a heating jacket as per customer’s specifications.
The side entry bag filters cost less, provide the end-user with long-term operation and have the same filtering results as other types of bag filter systems.

Main Parameters:

Item	A	B	C	D	E	H	Φ
ZTCD-1S	540	410	140	45	190	550	206
ZTCD-2S	880	730	140	45	190	800	206
ZTCD-3S	380		100	40	150	450	133
ZTCD-4S	350	350	100	40	150	450	133

Product Description

The fluid passes through the inlet on the side of the filter housing and is uniformly distributed through the filter bag which is held up by the support basket. The contaminants are collected by the filter bag and the filtered fluid is discharged from the outlet at the bottom of the bag filter. The quality of filtration depends on the filter bag’s pore size.
These models can be ordered with Flanged or NPT connections.These models are not available in carbon steel.
