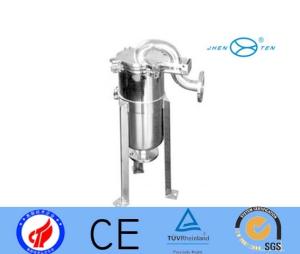

Easy Clean Inox Single Bag Filter Chemical Filtration Equipment
Design Features:
1.The maximum flows of these heating-jacket bag filters range from 45 to 200 US GPM.
2.The main housing, made of SS316/SS304, protects against corrosion.
3.The patented design ensures optimal performance and high quality filtration.
4.The maximum operating temperature is 110°C.
5.The pipeline design has been streamlined to provide a low pressure loss and, as a result, reduced energy consumption. The W-shaped patented gasket design provides an excellent seal with no side-leakage.
6.The Quick-opening design allows for ease in operation and maintenance.
7.Can be used for coarse, intermediate, and fine filtration.
8.Can be used to filter any acid, alkaline or neutral fluids and solvents.
9.The supplied support legs are adjustable to meet any height requirements.
Technical parameters:
1.Max operate pressure:1.0 Mpa
2.Max Operate Temprature :110℃
3. Design temperature: normal temperature
4. Sealing material: butyl rubber, silicone, fluorine rubber standard, standard configuration is silic a gel seal
5. Interface form: threaded, bar clasp, GB standard flange
6. Surface treatment: mirror polishing, electrolytic polishing, sandblast external surface
7. Filtration precision: 1um-100um
8. Material: SS304, SS316L
Main parameters
| Item | A | B | C | D | E | H | Φ |
| ZTCD-1S | 540 | 410 | 140 | 45 | 190 | 550 | 206 |
| ZTCD-2S | 880 | 730 | 140 | 45 | 190 | 800 | 206 |
| ZTCD-3S | 380 | | 100 | 40 | 150 | 450 | 133 |
| ZTCD-4S | 350 | 350 | 100 | 40 | 150 | 450 | 133 |
Application areas:
It's widely used in paint, beer, vegetable oil, pharmaceutical, cosmetics, chemicals, petroleum products, chemicals, electroplating liquid, milk, mineral water, hot solvents, latex, industrial water, coatings and paints, sugar, molasses, resins, inks, industrial waste water, fruit juice, edible oil, waxes and other industries precision filtration
