Stainless Steel Filter Cartridges Industrial Filtration Equipment

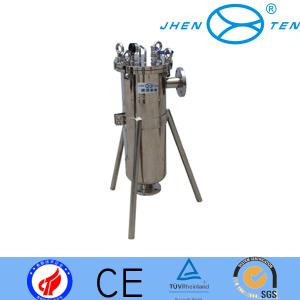

Stainless Steel SS304 Side Entry Bag Filter Housing meet sanitary grade requirement

Side Entry Bag Filter Description

Jhenten's Liquid Bag Filter effectively removes dirt,pipe scale,and other contaminants from process liquids such as water, beverage,chemical and petroleum products. Bag filter can be used with the standard #1,#2,#3,#4 size bags or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature.Effective filtering area is rather big,achieving more efficient filtering result.It is more convenient and swift to change the filter bag, thu to lower operating cost;The adjustable height makes the filter applicable to different occasions.

Technical specification

1.Material:SUS304,SUS316L or carbon steel

2.Design vessel pressure :0.6-1.0Mpa

3.Operate temperature:-20-130°C

4.Filtering accuracy: 0.1-20um

5.Filter Bag type:1#Ba,2#Bag,3#Bag,4#Bag

6.Flow Type:Side Entry,Top Entry,S-Multi,B-Multi Bag Filter

7.Connection vessel:GB,ANSI,JIS,and other flange

8.Inlet/Out Dimension: 1",1.5",2",2.5",3",3.5",4"

9.Surface Finish: Mirror Polish,Electrical Polish, Acid Washing,Matt Polish,Mechanical

Polishing ,Ra≤0.5μm

10.Usage:widely used in Food & Beverage,Wine Industry,Medicine, Chemical Industry,

Electronic Industry and So On.

Bag filter characteristics

1. A unique filter design techniques, to be effective in preventing filter bag filter

trap into the basket, ensure 100% without spills.

2. Basket laid by the computer, the high-intensity laser drilling stainless steel

plate, with rarely fixtures materials after molding, polishing,.

3. Compact size and reasonable. Installation and operation is simple and

convenient , the site is smaller.

4. Filtration with high precision, it applies to any suspension or fine

particulate material, the filters range from 1~800 micron;

5. Dealing with a larger flow filtration unit area, the smaller filtration resistance,

high filtration efficiency. Function of one filter bag is 5-10 times than filter

core of the same type ,which can greatly reduce costs. Flow design can

meet the requirements of 1~500m3/h, down low the manufacture cost;

6. A wide range of uses, can be used for coarse filtration, middle Filter or

accuracy filter; It comes to lower investment cost, long life and low cost

when achieve the same results in the circumstances compared with

Pre-filter water filtration and precision machines and other equipment

7. In the same rational structure and operation of low-cost, effectiveness and

capacity of the filter, Bag filters takes lower price than foreign imports.
