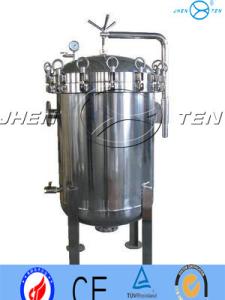

Liquid Equipment Industrial Filter Housing For Juice Milk

Name: Liquid Equipment Industrial Filter Housing For Juice Milk
Brand: JHENTEN
Price: 1 USD

Brand Name : JHENTEN

Model Number : ZTSF-15R

Certification : CE、ISO9001、ASME

Place of Origin : ZHEJIANG CHINA(Mainland)

MOQ : 1 PC

Payment Terms : Western Union, L/C, T/T

Supply Ability : 500pcs/month

Delivery Time : 4-6 work days

Packaging Details : plywood or customer's requirement

Material : ss304、ss316、ss316L

Model : ZTSF-15R

Max Operate Pressure : 1.0Mpa

Max Operate temp : 110 degree celsius

Pressure tolerance on weld : 0.85

surface finish : mirror polish、matt polish or 2B

Structure : cylindrical shells

Contact Now

Ss316L Industrial Filter Housing For Food&Beverage Juice Milk Liquid

Industrial Filter Housing

Jhenten' cartridge filter housings are specifically designed to remove solid particles and dirty from all kinds of liquid.Such construction is suitable for high flow situation with lower cost.And the cartridge filter housing can be custom made.

Typical application

water treatment system

Food&Beverage

Biotechnology

Chemical and painting filtration

Advantage

1.easy to operate
2.long life span
3.advanced technology
4.Beautiful appearance

Technical parameters:

1.Design pressure: 1.0 Mpa

2.Work pressure: 1.0 MPa

3.Design temperature: 110 degree celsius

4.Sealing material: butyl rubber, silicone, fluorine rubber standard, standard configuration is silica gel seal

5.Interface form: threaded, bar clasp, GB standard flange

6.Applicable filter: flat crush type PP great filter

7.Surface treatment: mirror polishing, electrolytic polishing,sandblast external surface

8.Filtration precision:high

9.Material: SUS304, SUS316, SUS316L

Main parameters

Item	No.of cartridges	20"	30"	40"	20“	30”	40“	C	D	E
ZTSF-15R	15-18R	1475	1775	1975	600	800	1050	300	200	400
ZTSF-21R	21R	1520	1770	2020	600	800	1050	300	200	450
ZTSF-24R	24.27.30R	1580	1830	2080	600	800	1050	300	200	500
ZTSF-36R	36R	1580	1830	2080	600	800	1050	300	200	550
ZTSF-42R	42R	1600	1830	2100	600	800	1050	300	200	600
ZTSF-48R	48-54R	1595	1845	2095	600	800	1050	300	200	650
ZTSF-60R	60R	1650	1900	2150	600	800	1050	300	200	700
ZTSF-75R	75R	1705	1955	2205	600	800	1050	300	200	800
