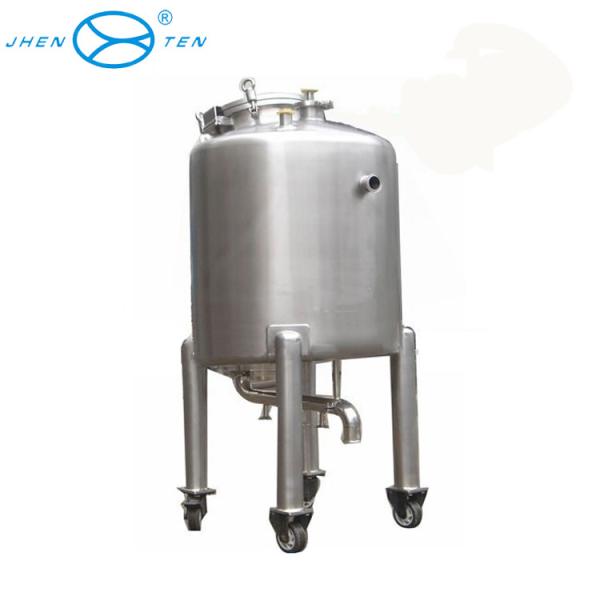

Sanitary Grade Stainless Steel Pressure Vessel / Portable Water Tank

Name: Sanitary Grade Stainless Steel Pressure Vessel Portable Water Tank
Brand: JHENTEN
Price: 1 USD

Brand Name : JHENTEN

Model Number : WATER TANK

Certification : CE ASME GMP ISO9001

Place of Origin : China （Mainland ZheJiang)

MOQ : 1 PC

Payment Terms : Western Union, T/T, L/C

Supply Ability : 300 sets/month

Delivery Time : 5-6 weeks

Packaging Details : plywood or customer‘s requirements

name : portable water tank

Material : SS304 Or SS316L

stainless steel tank grade : sanitary grade

stainless steel tank surface finish : mirror polish or acid washing

model : ZT

Contact Now

portable water tank Series

Manufactured and accepted according to the requirements of GB150-98 Steel Pressure Vessel or JB/T4735-97 Steel Welding Normal Vessel.

portable water tank Jhenten Quality Control :

1. The raw materaial plate was anlysised by our material anlysier to assure the quality

2. The welding is argon arc weld(TIG) to avoid plate's oxidized

3. After welding the the inner tank ,we will make a full water pressure test to check the welding joint .After welding the jacket ,the full water pressure test be done for jacket too

4. After finishing the surface finish ,our people will make a surface roughness testing to assure the Ra data.

5. After agitator installment ,we will operate it to assure the function is good.

6. The nozzle's position 's confirm also is checked by our quality control people.

Material:	SS304 or SS316L or Duplex stainless or 904L
Design Pressure:	-1 -10 Bar (g) or ATM B9
Work Temperature:	0-200 °C
Volumes:	100~30000L
Construction :	Vertical type or Horizontal type
Jacket type :	Dimple jacket, full jacket, or coil jacket
Structure :	Single layer vessel, vessel with jacket, vessel with jacket and insulation
Heating or cooling function	According to the heating or cooling requirement , the tank will have jacket for requried function
Opitional Motor:	ABB, Siemens, SEW or Chinese brand
Surface Finish:	Mirror Polish or Matt polish or Acid wash&pickling or 2B
Standard components :	Manhole,sight glass , cleaning ball
Optional components :	Vent filter, Temp. Gauge, display on the gauge directly on the vessel Temp sensor PT100, digital display on the control cabinet by instrument Temp sensor with control for heating and cooling Level gauge with digital display on the control cabinet by instrument Load cell Valves
Applications:	Wine, Beer Juices Food & Beverage Pharmaceutical Biotechnology & Laboratory Medical &Medical Device Chemical Industry Painting Industrial
