500L stainless steel steam jacket kettle with agitator
Feature
• Jacketed kettle have large heating area, high thermal efficiency, even heating advantage, short boiling time and easy control of heating temperature. It is a good equipment to improve quality, shorten time and improve working conditions on food processing.
• Volume: 50L-500L and multiple specification, also we can design and manufacture according to customers' requirement.
• The connection adopts Tri-clamp, the tanks inner use 304 or 316L. The inner surface mirror polishing Ra≤0.28um-0.6um. Outer surface can be polished, wiredrawn, sandblasted according to customer's requirement.
Application
• Used for the processing of various kinds of food, specially used in large restaurant or dining room to boil soup, cook, stew, boil congee, etc.
• Used in liquid configuration, decoction and concentration in pharmaceutica, lfood, chemical industry and light industry.
Tank Optional Configuration
• Jacketed Steam Kettle can configure thermometer (Digital display or Dialtype), pressure gauge, sight glasses, sanitary manhole, liquid in-outlet, CIPcleaning ball and so on, also can configure as customers requirement.
| Design Parameter |
| Design pressure | customers' requirements (ATM-1.0MPa) |
| Design temperature | Tank body and Jacket (0℃~250℃) |
| Material |
| Kettle Liner | 304, 316L |
| Jacket | 304 |
| Kettle Out Layer | 304 |
| Feet | 304 |
| Connection |
| In-outlet | Tri-clamp, Flange |
| Surface Finish |
| Finish type | Mechanical / electrolytic polishing, sand blasting, pickling |
| Polishing precision | Inner surface Ra≤0.4um |
| Outside surface Ra≤0.6um |
Normal Model And Main Technical Parameters
| Model | JTRZG-50 | JTRZG-100 | JTRZG-200 | JTRZG-300 | JTRZG-400 | JTRZG-500 |
| Effective volume(L) | 50 | 100 | 200 | 300 | 400 | 500 |
| Evaporation Kg/h (Rinsing) | 30 | 40 | 65 | 75 | 100 | 150 |
| Heat-transfer aream² | 0.4 | 0.6 | 1.0 | 1.44 | 1.65 | 1.9 |
| Steam consumption kg/h | 33 | 44 | 72 | 110 | 136 | 165 |
| Kettle | Diameter(mm) | Φ600 | Φ700 | Φ800 | Φ900 | Φ1000 | Φ1100 |
| Kettle Depth(mm) | 450 | 520 | 550 | 630 | 680 | 750 |
| Mxing | Power(kw) | 0.37 | 0.37 | 0.55 | 0.75 | 0.75 | 1.1 |
| RPM(r/min) | 36 (Can adjust the design according to the customer's usage) |
| Emulsification | Power(kw) | 1.1 | 1.1 | 1.5 | 1.5 | 1.5 | 2.2 |
| RPM(r/min) | 4P (Can adjust the design according to the customers usage) |

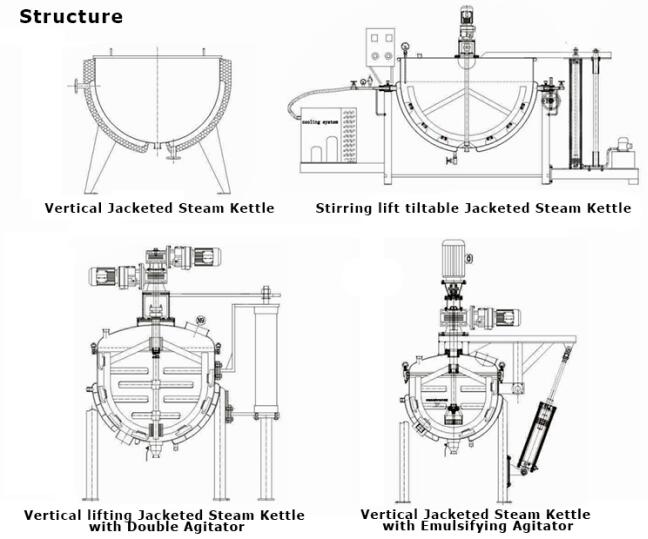

| Structure | Fixed(Vertical or horizontal)/ tiltable/ mixing |
The above-mentioned data is the standard, it can customize according to customers requirements
