Dissolving Stainless Steel Mixing Tank , Horizontal Melting Honey Mixing Tank
Stainless Steel Mixing Tank Describtion:
Horizontal Melting Dissolving Tank strictly follow the Article 31, 32 of GMP general rules “Good Manufacturing Practice” (Revised in 2010), and according to the "pressure vessels" (GB150-2011), "steel welded normal pressure vessel (with standard definition)" (NB/T 47003.1-2009) requirements for the design, manufacture and acceptance.
Horizontal Melting Dissolving Tank usually adopts horizontal round tank, left and right sides are standard flat head, the inner wall of the tank transition use circular arc transition, no dead corner, easy to clean;Jacket type (tank body ,and left , right side head are equipped with jacket and insulation layer),tank inner wall are mirror polished , meet GMP standard; configuration of mechanical stirring .
Tank Optional Configuration
Horizontal Melting Dissolving Tank optional configuration : sterile air filter, thermometer (digital display type or dial), sight glasses, sanitary manhole, in-outlet, CIP universal rotating cleaning ball, sterile sampling valve (stainless steel tank bottom), level gauge etc., or configured according to customer requirements.
Stainless Steel Mixing Tank Feature
• There are 1000L~10000L varietys of specifications, it can be designed, customized according to the customers' requirements.
• Jacket can put into steam (or hot water), also can put into cooling water, jacket is dimple jacket; Jacketed outside covered with insulation layer, insulation material is rock wool (keep warm) or PU (keep cold)
• Connector use fast installation chuck (clamp), inner tank use SS304 or SS316L, the inner surface mirror polishing Ra≤0.28μm~0.6μm, outer surface can be polishing, wiredrawing ,sandblasting according to customer's requirement.
• The stiring type is a special type of anchor frame; stiring work speed should be about 7 r/min. , stirring shaft seal adopts the sanitary mechanical seal, stirring motor can use planet-cycloid retarder, stepless reducer according to the customers' requirements.
| Design Parameter |
| |
| Design pressure | Tank body according to the customers' requirements(0.02MPa～0.8MPa) Jackets according to the customers' requirements(0.02MPa～0.5MPa) |
| | |
| Design temperature | Tank body, jackets according to the customers' requirements(0℃～160℃) |
| |
| Surface Finish |
| Finish type | Mechanical polishing, electrolytic polishing, Sand blasting , pickling |
| Polishing precision | Inner wall 0.4μm,outer wall 0.6μm |
| |
| Connection |
| In-outlet | Quick -open ,flange |
Structure
| Normal Model And Main Technical Parameters |
| Parameters | Model | JTRRJ—1000 | JTRRJ—2000 | JTRRJ—5000 | JTRRJ—10000 |
| Effective volume:L | 1000 | 2000 | 5000 | 10000 |
| body | Diameter :mm | Φ1100 | Φ1400 | Φ1900 | Φ2400 |
| | Height :mm | 1100 | 1400 | 2000 | 2300 |
| Mixing | Motor power:kW | 3 | 4 | 5.5 | 9.2 |
| | Mixing work RPM:r/min | 7(Special anchor,frame agitator) (The design can be adjusted according to customer usage) |
| The above-mentioned data is the standard ,for reference only. it can customize according to customer's requirements. |
Product Tags:
|
|

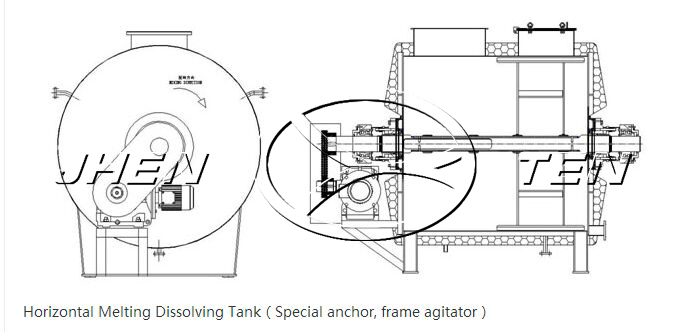

Dissolving Stainless Steel Mixing Tank , Horizontal Melting Honey Mixing Tank Images
|
