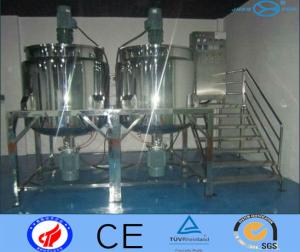

large capacity stainless steel mixing tank with agitator surface polished
Stainless Steel Mixing Tank Description:
Stainless steel mixing tanks are widely applied in the beverage, food, dairy, pharmaceutical, chemical and process industries used as blender tank, buffer tank and storage tank, which cleanable to sanitary standards.
1. Material:SUS304 and SUS 316L available
2. Capacity:100L-20000L
3. Widlely used in food, beverage,dairy,pharmacy Industries
4. Single layer,double layers ,three layers
5. Mirror Polished inside and outside
6. Three feet
Stainless Steel Mixing Tank Specification:
|
|
100L
|
200L
|
500L
|
1000L
|
2000L
|
5000L
|
10000L
|
20000L
|
|
Diameter(mm)
|
400
|
500
|
700
|
900
|
1200
|
1500
|
1800
|
2300
|
|
Heigh(mm)
|
2000
|
2300
|
2650
|
2900
|
3800
|
4480
|
5250
|
6550
|
|
Inner pressure(Mpa)
|
0.2
|
|
Layer pressure(Mpa)
|
0.3
|
|
stirring paddle No.
|
2
|
|
Stirring speed(r/min)
|
80
|
|
Motor power(kw)
|
0.55
|
0.75
|
1.1
|
1.5
|
3
|
5.5
|
7.5
|
7.5
|
|
Cooling method
|
Layer calandria
|
|
Stainless steel Mixing tank
|
|
Material:
|
SS304 or SS316L or Duplex stainless or 904L
|
|
Design Pressure:
|
-1 -10 Bar (g) or ATM B9
|
|
Work Temperature:
|
0-200 °C
|
|
Volumes:
|
100~30000L
|
|
Construction :
|
Vertical type or Horizontal type
|
|
Jacket type :
|
Dimple jacket, full jacket, or coil jacket
|
|
Structure :
|
Single layer vessel, vessel with jacket, vessel with jacket and insulation
|
|
Heating or cooling function
|
According to the heating or cooling requirement ,
the tank will have jacket for requried function
|
|
Opitional Motor:
|
ABB, Siemens, SEW or Chinese brand
|
|
Surface Finish:
|
Mirror Polish or Matt polish or Acid wash&pickling or 2B
|
|
Standard components :
|
Manhole,sight glass , cleaning ball
|
|
Optional components :
|
Vent filter, Temp. Gauge, display on the gauge directly on the vessel
Temp sensor PT100, digital display on the control cabinet by instrument
Temp sensor with control for heating and cooling Level gauge with digital
display on the control cabinet by instrument Load cell Valves
|
|
Applications:
|
Wine, Beer Juices Food & Beverage Pharmaceutical Biotechnology &
Laboratory Medical &Medical Device Chemical Industry Painting Industrial
|
Stainless Steel Mixing Tank Application:
The fermentation process of pharmacy, fine chemical engineering and biological products is aseptic and untainted. Fermentation tank adopts aseptic system which helps avoid microorganism pollution in the air and greatly extends quality warranty period and purity of the products. We specially designed and installed aseptic respiratory air hole or aseptic normal-pressure fermentation system, which can finish circulating heat-up and cooling. The parts that contact materials are all made of stainless steel SUS304 or SUS316L. heat preservation adopts sand frinding surface polishing treatment. All is in accordance with GMP stangard.
Volume has different specifications ranging from 100L to 20000L.
Competitive Advantage:
Jhenten is a professional manufacturer of tank equipment more than 30years .
Jhenten can produce cartridge filter housing ,bag filter housing ,water filter housing ,industrial filter housing ,high
flow filter housing etc
Currently Jhenten already obtained CE,ISO9001 ,D1 D2 pressure vessel fabricate certificate and we also are the
stable supplier of Veolia ,SIEMENS ,IWAI ,SPX , Mitsubishi
