Thick / Thin Agitator Mixing Tank Adopts Vertical Circular Tanks

Name: Thick Thin Agitator Mixing Tank Adopts Vertical Circular Tanks
Brand: JHENTEN
Price: 1 USD

China Thick / Thin Agitator Mixing Tank Adopts Vertical Circular Tanks wholesale

Brand Name : JHENTEN

Model Number : JTRPG

Certification : CE ，ISO9001,ASME

Place of Origin : CHINA

MOQ : 1 PC

Price : Can negotiate

Payment Terms : L/C, D/A, T/T, D/P

Supply Ability : 500set/month

Delivery Time : 30DAYS

Packaging Details : plywood packing or according to customer requirements

mateiral : SS304 SS316

Manufacturing process : Stainless Steel Materials

surface treatment : Electrical polish,Mirror polish,Sand polish ,Aicd washing,2B

Nominal pressure : Barrel according to customers’ requirement（0.02MPa～0.8MPa） Jacket according to customers’ requirement（0.02MPa～0.5MPa）

Contact Now

Thick/Thin Agitator Mixing Tank strictly follow the Article 31, 32 of GMP general rules “Good Manufacturing Practice” (Revised in 2010), to design, produce and inspect according to the requirement of “Pressure Vessel”(GB150-2011) and “Steel welded atmospheric pressure vessels”(NB/T 47003.1—2009)

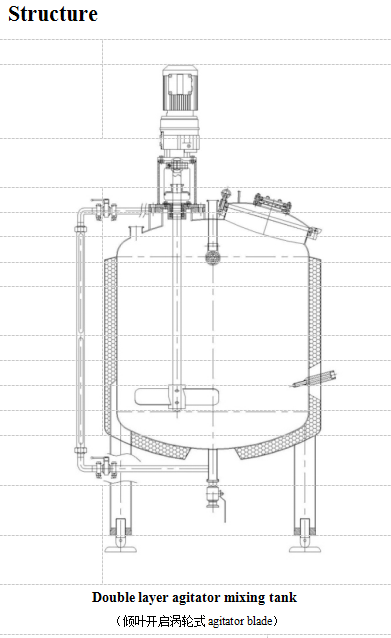

Thick/Thin Agitator Mixing Tank adopts Vertical circular tanks, both of top and bottom are standard oval and torispherical head. Transition section in tank using circular arc transition, without dead corner, easy to clean. Single layer, double layer(insulation for tank and bottom head) or Jacket(tank and bottom head have jacket and insulation), equipped with mechanical stirring according to customers’ requirement.

Tank Optional Configuration

The body of Thick/Thin Agitator Mixing Tank can chose sterile air filter, thermometer(Digital display or Dial type), PH meter, pressure gauge, steam sterilization hole, sight glasses, sanitary manhole, liquid in-outlet, CIP Universal rotating cleaning ball, liquidometer and Liquid level control system(Bearing module, non-contact ultrasonic, static pressure transmitting device) and so on, also can configure as customers’ requirement.

Feature

• Volume:100L~5000L and multiple specification, also can design and manufacture according to customers’ requirement.

• Jacket can pass steam (or hot water), can also pass the cooling water. Jacket has disk tubular, full jacketed and Maitreya plate. Jacketed outside covered with insulation, thermal insulation material for rock wool (warm) or PU (cold).

• The connection adopts Tri-clamp, the tanks’ inner use 304 or 316L. The inner surface mirror polishing Ra≤0.28μm～0.6μm, outer surface can polishing, wire drawing and sandblasting according to customers’ requirement.

• Agitation adopts top or side mechanical agitation. Stirring methods(Push type, screw, anchor, etc) can be selected. The best revolving speed range should be 36 r/min～53 r/min.

• The sealing of agitating shaft adopts sanitary mechanical seal. The mixing motor can use Cycloidal reducer, stepless speed reducer. These items can be selected according to customers’ requirement. (Frequency control is widely used)

Application
• Can be a Storage Tank, mixing tank, temporary Storage Tank, mixing tank, etc., Used in liquid materials’ mixing and storage such as traditional Chinese medicine, food, fruit juice beverage, dairy products, seasoning, brewing, beer, pharmaceutical, chemical and biological engineering.

Design Parameter

Design pressure	Barrel according to customers’ requirement(0.02MPa～0.8MPa) Jacket according to customers’ requirement(0.02MPa～0.5MPa)

Design temperature	Barrel and Jacket according to customers’ requirement(0℃～160℃)
Material

Liner	304,316L
Jacket	304
Insulation	Rock wool (keep warm) PU (cold insulation)
Feet	304
Connection

In-outlet	Quick open, Flange
Surface Finish

Finish Type	Mechanical polishing, electrolytic polishing, sand blasting, pickling
Polishing precision	Inner wall 0.4μm,Outer wall 0.6μm

Normal Model And Main Technical Parameters
Parameters		Model	JTRPG—100	JTRPG—300	JTRPG—600	JTRPG—1000	JTRPG—2000
Effective volume:L			100	300	600	600	2000
Body	Diameter:mm		Φ500	Φ800	Φ900	Φ1100	Φ1300
	Height:mm		500	700	900	1000	1500
Agitator	Power:kW		0.37	0.75	1.1	1.5	2.2
	RPM:r/min		36～53(The design can be adjusted according to customer use condition)
The above-mentioned data is the standard, for reference only. It can customize according to customer's requirements.
