GMP Standard Stainless Fermentation Tank Double Layer For Brew Beer

Name: GMP Standard Stainless Fermentation Tank Double Layer For Brew Beer
Brand: Jhenten
Price: 1 USD

Brand Name : Jhenten

Model Number : ZTFV-1

Certification : CE , ISO9001 , SGS , TUV , ASME U Stamp

Place of Origin : China （Zhejiang）

MOQ : 1 PC

Price : Can negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 300 sets/month

Delivery Time : 25 workdays

Packaging Details : plywood packing or according to customer requirements

Material : SS304 or SS316L or Duplex stainless or 904L

After-sales Service Provided : Engineers available to service machinery overseas

Opitional Motor : ABB, Siemens, SEW or Chinese brand

Warranty : 1 year

Weight : 200~5000kg

Function : Fermentation

Standard : GMP Standard

Inner Surface : Ra≤0.6μm

Contact Now

SS316L , SS304 GMP Standard Stainless Fermentation Tank Double Layer For Brew Beer

Specification:

The whole set equipment is made of austenitic stainless steel.The cooling jacket adopts dimple jacket. The jackets are provided at tank body and conical bottom to effectively increase the cooling speed. Heat exchangeing area of jacket of different proportions can be allocated according to customers' technological requirements.

Main parameters:

Item	Volume	A	B	C	D	E	F	G
ZTFV-04	400L	950	1090	500	750	165	320	2220
ZTFV-06	600L	950	1090	500	1000	165	320	2470
ZTFV-08	800L	1100	1240	500	1030	175	351	2561
ZTFV-1	1000L	1270	1410	500	1030	195	386	2636
ZTFV-1.5	1500L	1270	1410	500	1390	195	386	3096
ZTFV-2	2000L	1400	1540	500	1460	225	413	3223
ZTFV-3	3000L	1600	1740	500	1670	255	455	3505
ZTFV-4	4000L	1850	1990	500	1700	305	506	3636
ZTFV-6	6000L	1850	1990	500	2470	305	506	4406
ZTFV-10	10000L	2150	2315	500	2970	340	568	5268
ZTFV-15	15000L	2450	2615	500	3400	360	631	5781
ZTFV-20	20000L	2850	3015	500	3400	380	714	5884

Application:

Fermentation tank have widely used in the Grape wine,strawberry wine ,Mulberry wine brewing

Surface cleaning

Sanitary vessel cleaning requirement is very strict , it need to be fully consideration during design process. No dead corner design can ensure the cleaning and sterilizing effect.

Jhenten Machinery use CAD simulate the CIP spray scope , it can help to ensure cleaning effect and use least cleaning solution to reduce end user operating cost. Outside surface cleaning is also very important. Jhenten Machinery consider practicability as well as aesthetics during design, outside surface should not only be cleaning easily , but also ensure operator safe.

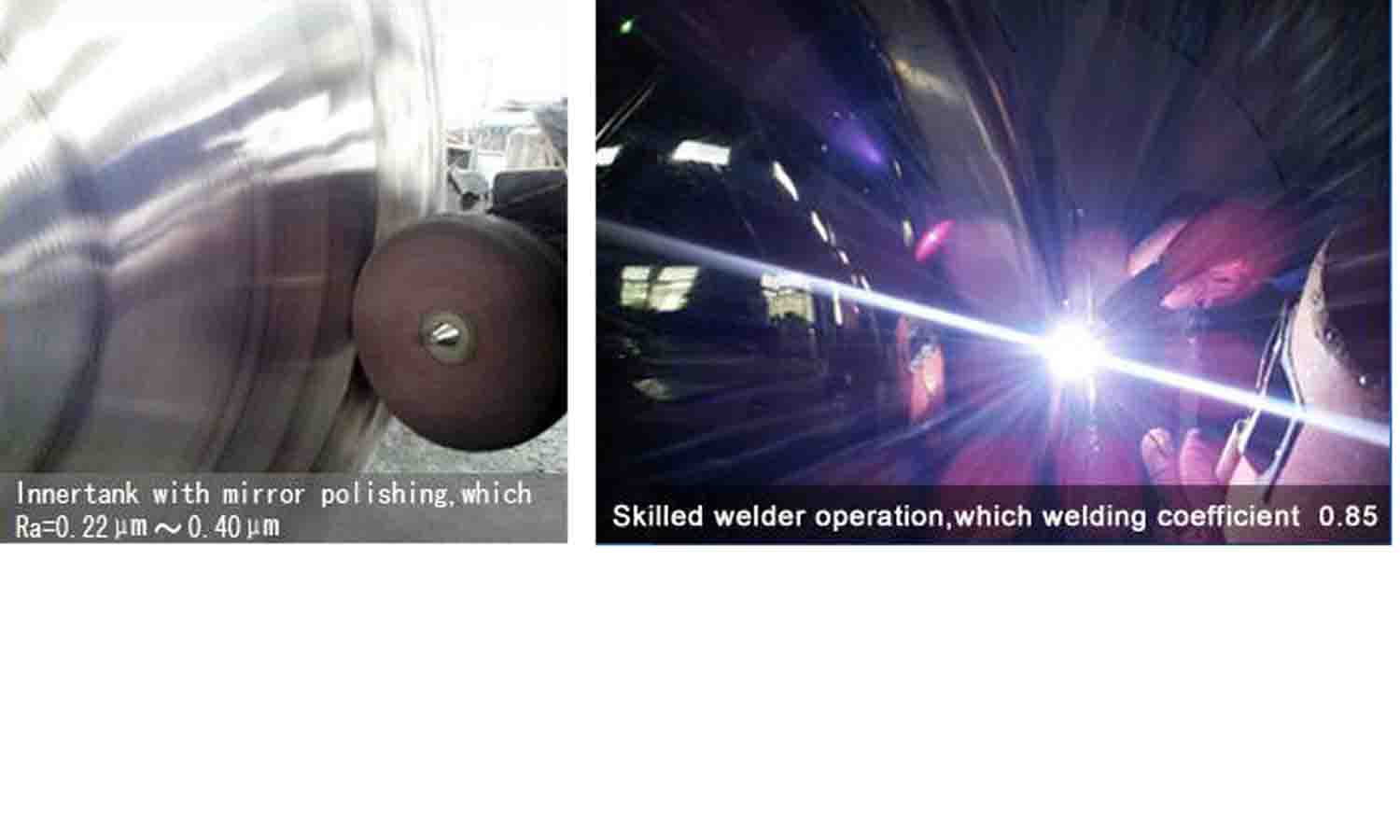

Production technology

GMP Standard Stainless Fermentation Tank Double Layer For Brew Beer
