Bag Filter Housing
Jhenten's Liquid Bag Filter effectively removes dirt, pipe scale, and other contaminants from process liquids such as water, beverage, chemical and petroleum products. Bag filter can be used with the standard #1, #2, @3, #4 size bags or the standard perforated basket as a strainer. Mesh lined baskets are also available as an optional feature effective filtering area is rather big, achieving more efficient filtering result. Eye Bolt Closure System. The user friendly, cost effective bag filter housing for high volume, multiple applications and processes. The Max. Flow of single unit are from 90 Cubic m/h to 1080 cubic m/h.
Operation Parameters
Maximum Operation Pressure: ...150 PSI( 10 Bar)
Maximum Operation Temperature: ...230ºF (110 ºC)
Pressure Tolerance on Weld: ...0.85
Technical specification
1. Material: SUS304, SUS316L
2. Design vessel pressure: 0.6-1.0Mpa
3. Operate temperature: -20-130° C
4. Filtering accuracy: 0.1-20um
5. Filter Bag type: 1#Bay, 2#Bag, 3#Bag, 4#Bag
6. Flow Type: Side Entry, Top Entry, S-Multi, B-Multi Bag Filter
7. Connection vessel: GB, ANSI, JIS, and other flange
8. Inlet/Out Dimension: 1", 1.5", 2", 2.5", 3", 3.5", 4"
9. Surface Finish: Mirror Polish, Electrical Polish, Acid Washing, Matt Polish, echanical Polishing
10. Usage: Widely used in Food & Beverage, Wine Industry, Medicine, Chemical Industry, Electronic Industry and so on.
Main Parameters
| Specification (Changes possible w/o notice) |
Size 01 |
Size 02 |
| Type code |
DSF-B201-050D |
DSF-B202-050D |
| Max. flow rate (m³ /h) |
40 |
80 |
| Filter area (m² ) |
0.5 |
1.0 |
| Filter housing volume (litre) |
31 |
54 |
| Filter housing weight (kg) |
approx. 78 |
approx. 90 |
| Installation height (cm) |
approx. 118 |
approx. 156 |
| Installation space (cm) |
approx. 130 x 40 |
| Mode of installation |
self-supporting |
| Material of construction Housing |
SS304 /SS316 |
| Restrainer basket |
SS304 /SS316 |
| Closure |
SS 304 (swing eye bolts and ring nuts) |
| Other parts |
SS 304 |
| Operating data |
max. 10 bar / 120 ° C respectively 15bra / 30 ° C |
| Housing connections N1/N2 (inlet / outlet) |
DN50 / PN10 |
| N3/N4 (lid hole) |
1/4" BSP female w/o plug |
| Hinged lid |
standard position at 90° /270° |
| Packing: corrugated box (cm) |
|
Product Tags:
|
|

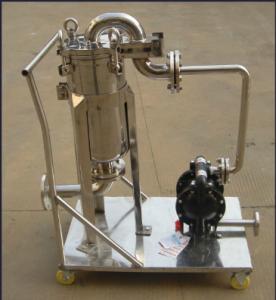

Ss304 Ss316 Stainless Fermentation Tank Movable Bag Filter Housing Images
|
