Inlet Outlet 1" Middle Commercial Water Filters Basket Strainer For Liquid

Name: Inlet Outlet 1quot Middle Commercial Water Filters Basket Strainer For Liquid
Brand: Jhenten
Price: 1 USD

Brand Name : Jhenten

Model Number : ZTLF-16

Certification : CE ISO9001 ASME SGS

Place of Origin : China (Zhejiang)

MOQ : 1 PC

Price : Can negotiate

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 3000 Set/Sets per Year

Delivery Time : 25 Days

Packaging Details : plywood packing or according to customer requirements

Material : SS304,316L

Surface finish : Mirror polish ， Matt polish ， Sand blasted ， 2B

Gasket material : EPDM , PTFE, Viton ， Silicone

Basket Material : Stainless Steel

Connection standard : Clamp , Flange ， Screw thread

Filtration accuracy : 0.2 um

Contact Now

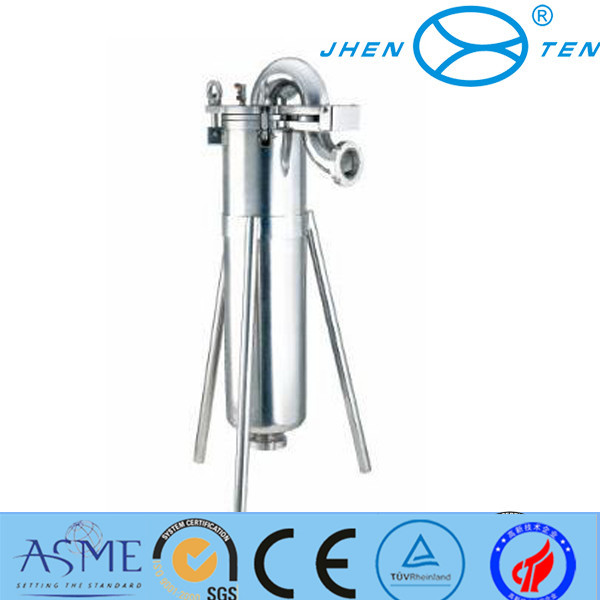

Inlet / Outlet 1" , Middle Filter Basket Type Strainer For Liquid

Description:

Basket type filter is used for prefilter or middle filter,which removes particles, visible to naked eye. The filter media is stainless mesh for high pressure and temperature . Outside the filter mesh is covered with basket support to withstand pressure . Jhenten's basket type filter also can jacket and insulation layer for our customer who is required .

Typical application:

Basket type strainers are widely used to remove foreign particles & debris wherever liquid flow . This type filter can be applied to follow arer: edible oil ,beverage and winery chemical industry Prefilter and protect for all kinds of equipments

Specifications

1 high flow.
2 ISO9001/SGS/CE
3 Stainless steel basket filter
4 Can used in high temperture.

Main parameters:

Item	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)
ZTLF-16	810	425	294	275	75
ZTLF-40	1050	600	400	300	100
