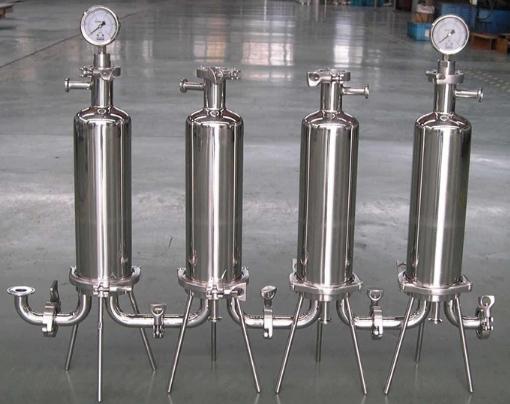

inox single cartridge filter Sanitary filter housing 222 or 226 single open element
DESCRIPTION:
SS Filter Housing consists of SUS316L or SUS304, and take filter cartridge as its element. The SS filter housing can be used for filtration of liquid, gas and 0.1um above particles and bacteria, with high removal rating and flow rate. It possess properties of lower absorption, no medium shedding, no leakage, acid and alkali Resistance, and corrosion resistance. In addition, it is easy to wash and function as back flush, and is ideal filtration equipment for the industry of biology & pharmacy, beer & beverage, chemical, and water treatment etc.
Main Parameters
| Housing | 316L/304 Stainless Steel |
| Clamp | 304 Stainless Steel |
| Seal | Silicone, EPDM, Viton |
| Cartridge Capacity |
| 3-round, 5-round, … | |
| Connections |
| Inlet/Outlet TC/Union/Flange Gauge Port 1½” TC Cartridge 222/Fin, 226/Fin, DOE Vent ½” TC/Sanitary valve with Hosebarb |
| Maximum Operating Conditions |
| Minimum/Maximum Operating Pressure -1 to 6 bar Maximum Operating Temperature 140℃ |
| Surface Finish |
| < 0.8 micron Ra |
Main Appilications:
1. Pre-treatment for various kind of water
2. Used in RO system ,EDI system and UF system,etc.
3. Used for paint, beer, vegetable oil, pharmaceuticals, chemicals, petroleum products, textile chemicals, photographic chemicals, electroplating liquid, milk, mineral water, thermal solvents, emulsions, industrial water, syrup, resin, printing ink, industrial waste water, fruit juice, edible oil, wax, etc.
Customized products are available.
Specification
1) Made up of stainless steel 304 or 306,clean and sanitary.
2) Humanized structure design , easy to operate and maintain.
3) Filtration precision: 1μm--100μm
4) Interface type: clamp, standard flange
5) Design temperature: 20°C~120°C
6) Design pressure: 0.75—1.6Mpa
7) Seal type: O-ring and flat pad
8) Sealing material: Nitrile rubber, silicone, Viton standard,
9) Apply filter: Flat and 222 and 226 socket filter
10)Surface Treatment: honed, polishing, electrolytic polishing.
11)High flow rate and long service life
Our Service
Jhenten offers you the best quality and service:
- Prompt reply within 24hours.
- Professional technical support.
- Verification service:Quality certification, third-party testing, etc.
- Global sales network
