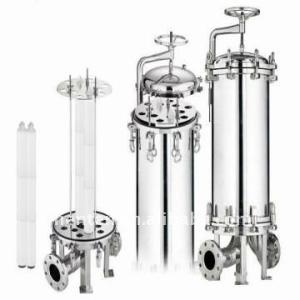

20" 30" 40" sanitary precise filter housing filter multy cartridges
Introduction:
Sanitary filter housing is all made of high quality 304 or 316L stainless steel, and the materials for each filter are
rigorously selected and each filter is carefully produced, this ensures non-crack streamlined design, so that each
has a good surface and maximum corrosion resistance in order to achieve the quality standard of preventing bacterial contamination. The unique structure of the sanitary filter sleeve makes no dead corner formed at the inner and outer surfaces of each sleeve, and it can be completely removable and washable, easy to operate.
Inner surface: mirror polishing or electrolytic polishing.
Outer surface: matt, mirror polishing or electrolytic polishing.
Seal ring: food-grade silicone rubber seal ring, with quality assurance.
Locking type: clamp, sanitary casing or bolts can be fast assembled and disassembled.
Detection method: each filter has gone through a hydrostatic pressure test under the pressure up to 1.25 times
the design pressure.
Maximum working pressure: 10kgf/cm2
Maximum operating temperature: 120°C
Material of cylinder structure: 304 or 316L
Specificatios:
| Name | Inner surface |
| Max Operate Pressure(MPA) | 1.0 |
| Max Operate Temperature (℃ ) | 110 |
| Pressure Tolerance on Weld | 0.85 |
| Corrosion by acid (mm) | 0 |
|
Item | No.of
Cartridges | A | B |
C |
D |
E |
| 20" | 30" | 40" | 20"" | 30" | 40" |
| ZTJM-15R | 15-18R | 1475 | 1775 | 1975 | 600 | 800 | 1050 | 300 | 200 | 400 |
| ZTJM-21R | 21R | 1520 | 1770 | 2020 | 600 | 800 | 1050 | 300 | 200 | 450 |
| ZTJM-24R | 24,27,30R | 1580 | 1830 | 2080 | 600 | 800 | 1050 | 300 | 200 | 500 |
| ZTJM-36R | 36R | 1580 | 1830 | 2080 | 600 | 800 | 1050 | 300 | 200 | 550 |
| ZTJM-42R | 42R | 1600 | 1830 | 2100 | 600 | 800 | 1050 | 300 | 200 | 600 |
| ZTJM-48R | 48-54R | 1595 | 1845 | 2095 | 600 | 800 | 1050 | 300 | 200 | 650 |
| ZTJM-60R | 60R | 1650 | 1900 | 2150 | 600 | 800 | 1050 | 300 | 200 | 700 |
| ZTJM-75R | 75R | 1705 | 1955 | 2205 | 600 | 800 | 1050 | 300 | 200 | 800 |
Filter Housing Operating Parameters
| Items | Parameters |
| Max Operate temperature | 150ºC |
| Max Operate pressure | 10bar |
| Corrosion by acid | 0 mm |
| Industrial sure tolerance on weld | 0.85 |
Application:
1. Pure water, bottled water, fine filtration, clarification of a variety of industrial
2. Purify variety of chemical solution.
3. Water treatment and medicine, liquor and beverage clarification and enrichment.
4. Beer, grape wine, yellow wine, wine and beverage industry
