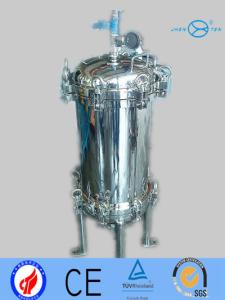

Polished surface sanitary precise filter housing filter easy to clean
Introduction:
This Precision filter adopts micro-hole filtering film made of high polymer material.It is mainly used to filter super water, distilled water mineral water, beer, drink and so on. It has features of high effciiency in filtering, good quality, compact structure, easy cleaning and it is ideal filter equipment for small and middle scale drink factories.
Detailed Product informations
1. Housing Material: Stainless steel 304 OR SS316L
2. Filter: PP or PES ,PTFE
3. Inlet and outlet diameter: DN25, DN40, DN50, DN65, DN80, DN100, DN150
4. Filter Length: 10 "20" 30 "40"
5. Tube diameter: 170 ~ 1000mm
6. Pressure capacity: <= 10Kgf/cm ²
7. The aperture is so toothful to keep away the sediment .
8. The aperture IS uniformity.
9. The mini hole occupy the 80% of the whole plate, so the filter speed is fast.
10. No resort on the plate.
11. Widely used in many kinds of liquor.
12. Small volume, easy to change the core, and easy to operate
Specificatios:
| Name | Inner surface |
| Max Operate Pressure(MPA) | 1.0 |
| Max Operate Temperature (℃ ) | 110 |
| Pressure Tolerance on Weld | 0.85 |
| Corrosion by acid (mm) | 0 |
|
Item | No.of
Cartridges | A | B |
C |
D |
E |
| 20" | 30" | 40" | 20"" | 30" | 40" |
| ZTJM-15R | 15-18R | 1475 | 1775 | 1975 | 600 | 800 | 1050 | 300 | 200 | 400 |
| ZTJM-21R | 21R | 1520 | 1770 | 2020 | 600 | 800 | 1050 | 300 | 200 | 450 |
| ZTJM-24R | 24,27,30R | 1580 | 1830 | 2080 | 600 | 800 | 1050 | 300 | 200 | 500 |
| ZTJM-36R | 36R | 1580 | 1830 | 2080 | 600 | 800 | 1050 | 300 | 200 | 550 |
| ZTJM-42R | 42R | 1600 | 1830 | 2100 | 600 | 800 | 1050 | 300 | 200 | 600 |
| ZTJM-48R | 48-54R | 1595 | 1845 | 2095 | 600 | 800 | 1050 | 300 | 200 | 650 |
| ZTJM-60R | 60R | 1650 | 1900 | 2150 | 600 | 800 | 1050 | 300 | 200 | 700 |
| ZTJM-75R | 75R | 1705 | 1955 | 2205 | 600 | 800 | 1050 | 300 | 200 | 800 |
Filter Housing Operating Parameters
| Items | Parameters |
| Max Operate temperature | 150ºC |
| Max Operate pressure | 10bar |
| Corrosion by acid | 0 mm |
| Industrial sure tolerance on weld | 0.85 |
Application:
1. Pure water, bottled water, fine filtration, clarification of a variety of industrial
2. Purify variety of chemical solution.
3. Water treatment and medicine, liquor and beverage clarification and enrichment.
4. Beer, grape wine, yellow wine, wine and beverage industry
