SS316L Rotary Open Type Sterilization Chemical Fermentation Equipment System

Name: SS316L Rotary Open Type Sterilization Chemical Fermentation Equipment System
Brand: Jhenten
Price: 1 USD

Brand Name : Jhenten

Model Number : ZTFV-1

Certification : CE , ISO9001 , SGS , TUV , ASME U Stamp

Place of Origin : China （Zhejiang）

MOQ : 1 PC

Price : Can negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 300 sets/month

Delivery Time : 25 workdays

Packaging Details : plywood packing or according to customer requirements

Material : SS304 or SS316L or Duplex stainless or 904L

After-sales Service Provided : Engineers available to service machinery overseas

Opitional Motor : ABB, Siemens, SEW or Chinese brand

Warranty : 1 year

Weight : 200~5000kg

Function : Fermentation

Standard : GMP Standard

Inner Surface : Ra≤0.6μm

Contact Now

SS316L Rotary Open Type sterilization Chemical Fermentation Equipment System

Description

Fermentation equipment tank type can be divided into two categories: one is the anaerobic fermentation of cone type (e.g., alcohol fermentation), another kind is for gas fermentation tank type (such as standard type, wu type, self-priming, etc.). This kind of equipment especially in the standard type can use the most common type. I plant design fermentation tank type series drawings belong to standard type tank. When designing all kinds of fermentation equipment, design structure, have enough strength and service life, makes every effort to internal attachment for equipment is less, the surface is smooth, want to have good gas jujube noticed steam contact and vapor solid mixture performance, make the material transfer, gas exchange effectively. There is enough heat exchange area, in order to keep the fermentation under the optimum temperature. Attaches great importance to the sealing performance to ensure the sterilization operation of the equipment.

Main parameters:

Item	Volume	A	B	C	D	E	F	G
ZTFV-04	400L	950	1090	500	750	165	320	2220
ZTFV-06	600L	950	1090	500	1000	165	320	2470
ZTFV-08	800L	1100	1240	500	1030	175	351	2561
ZTFV-1	1000L	1270	1410	500	1030	195	386	2636
ZTFV-1.5	1500L	1270	1410	500	1390	195	386	3096
ZTFV-2	2000L	1400	1540	500	1460	225	413	3223
ZTFV-3	3000L	1600	1740	500	1670	255	455	3505
ZTFV-4	4000L	1850	1990	500	1700	305	506	3636
ZTFV-6	6000L	1850	1990	500	2470	305	506	4406
ZTFV-10	10000L	2150	2315	500	2970	340	568	5268
ZTFV-15	15000L	2450	2615	500	3400	360	631	5781
ZTFV-20	20000L	2850	3015	500	3400	380	714	5884

Our survice:

we will supply you with drawing before manufacturing.

we will firmly manufacture according to the drawing.

we will be in charge of installation.

we will send you our fittings for free if it is broken bt accident during 2 years

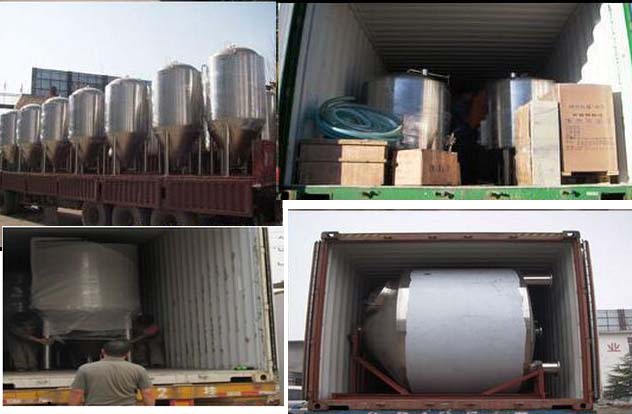

Shipping
