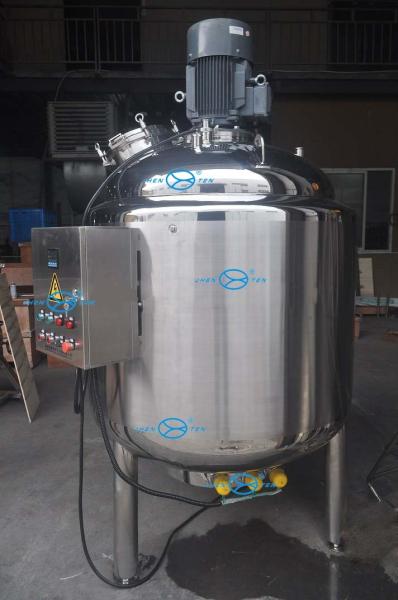

Hygienic Grade Customized Stainless Fermentation Tank Dimple Full Coil Jacket

Name: Hygienic Grade Customized Stainless Fermentation Tank Dimple Full Coil Jacket
Brand: Jhenten
Price: 1 USD

Brand Name : Jhenten

Model Number : ZTFV-08

Certification : CE , ISO9001 , SGS , TUV , ASME U Stamp

Place of Origin : China （Zhejiang）

MOQ : 1 PC

Price : Can negotiation

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 300 sets/month

Delivery Time : 25 workdays

Packaging Details : plywood packing or according to customer requirements

Material : SS304 or SS316L or Duplex stainless or 904L

warranty : 1 year

Jacket type : Dimple jacket, full jacket, or coil jacket

Construction : Vertical type

Design Pressure : -1 -10 Bar (g) or ATM B9

Work Temperature : 0-200 °C

condition : new

Voltage : customized

Contact Now

Hygienic Grade Customized Stainless Steel Stirred Seed Fermenter

Configuration of tank

1.Various types of CIP cleaners.

2.Sterile respirator.

3.Inlet of seed.

4.Adjustable triangular bracket.

5.Thermometer (according to customer requirements).

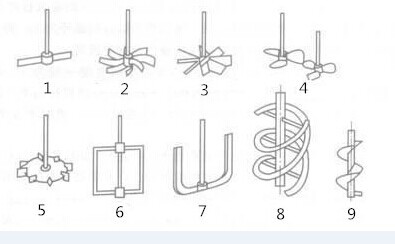

6.Blender (according to customer requirements).

Hygienic Grade Customized Stainless Fermentation Tank Dimple Full Coil Jacket

7.Jacket (miller board, hollow jacket are available according to customer requirements).

8.View lamp (according to customer requirements).

9.Sampling valve.

It can be customized according to special requirements of our customers. Total height is computed according to the height (800mm) of the discharge outlet. If the height of discharge outlet is changed, total height shall be adjusted.

Main parameters

Item	Volume	A	B	C	D	E	F	G
ZTFV-04	400L	950	1090	500	750	165	320	2220
ZTFV-06	600L	950	1090	500	1000	165	320	2470
ZTFV-08	800L	1100	1240	500	1030	175	351	2561
ZTFV-1	1000L	1270	1410	500	1030	195	386	2636
ZTFV-1.5	1500L	1270	1410	500	1390	195	386	3096
ZTFV-2	2000L	1400	1540	500	1460	225	413	3223
ZTFV-3	3000L	1600	1740	500	1670	255	455	3505
ZTFV-4	4000L	1850	1990	500	1700	305	506	3636
ZTFV-6	6000L	1850	1990	500	2470	305	506	4406
ZTFV-10	10000L	2150	2315	500	2970	340	568	5268
ZTFV-15	15000L	2450	2615	500	3400	360	631	5781
ZTFV-20	20000L	2850	3015	500	3400	380	714	5884

Our Service

1. Jhenten machinery have sales department, engineering department, after sales department, we are all service for you;
2. We are not competing for the price but the high quality and friendly service we competition
3. The salesman and engineer will listen to your requirements and the effect which you want to reach patiently, and tailored for you;
4. The after sales colleague will service for you from place an order to the actual production;
5. 29 years of industry experience, industry leader;
6. Factory, office site visit.
